Product Details
＋
Specs
Model:
NF150-A ESD
Item #:
145846
Drive Size:
1/4" F/Hex
American:
2.6 - 13 lbf.in
S.I.:
29.4 - 147 cN.m
Metric:
3 - 15 kgf.cm
Tool Weight:
2.3 lb.
Tool Length:
13
Tool Height:
2.5
Minimum Adjustable RPM Range:
800
Maximum Adjustable RPM Range:
1700
Grip Dia:
1 1/3"
Requires Program Lock Key:
true

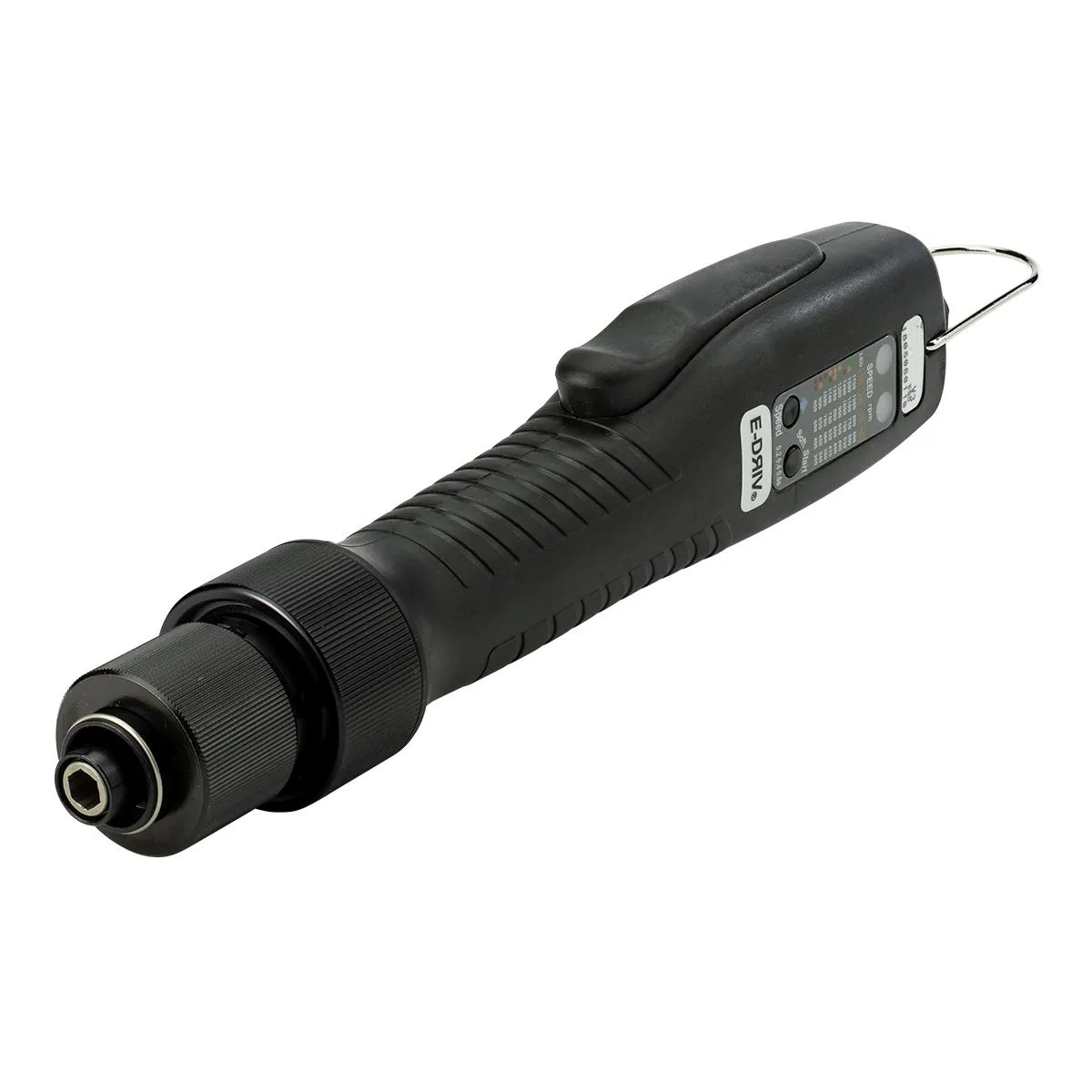

The NF-Series standard models feature an adjustable RPM setting on the tool and a selectable Soft Start mode. Engineered for high-volume manufacturing applications, the brushless motor design ensures durability and reduces the standard maintenance costs of brush-type electric screwdrivers. The NF power tool is ESD certified, ensuring less than 1 Ohm at the bit tip. ESD management assures product quality, cost savings, and a reduction in overall ESD failures. Manufacturing engineers involved with microelectronic products are aware of the importance of controlling Electrostatic Discharge (ESD) failures. Lapses in preventing the occurrence of electrostatic discharge can affect production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.
- Adjustable RPM setting on the tool.
- A selectable Soft Start mode from 0.2-0.6 seconds.
- High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
- Designed for high production environments. Minimal heat build-up even when the tool is operated continuously.
- Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction. Features a LED display that signals the tool status for the operator to view.
- Can be connected with the Scout Screw Counter.
- External torque adjustment scale.
- Requires STC40 transformer (power supply).
- ESD safe tool designed and prevent the occurrence of electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
Requires (Item # 145774) in order to adjust RPM & Soft Start Settings for select NF-Series models. Program Lock Key must be plugged into the .
